1. 带定位环的环型凸缘法兰
ISO-F

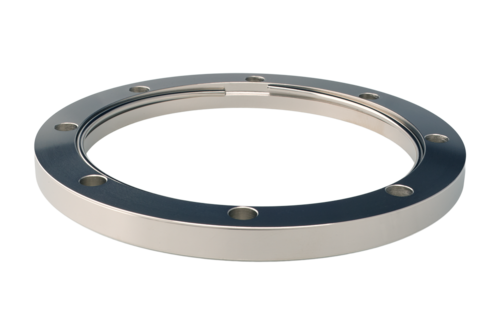

带定位环的环型凸缘法兰

Collar-Flange-with-Retaining-Ring
嵌入式选项

与我们一起彻底改变您的真空计使用体验！

了解更多

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Flange
DN 16 ISO-KF
Switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information

You can unsubscribe from these communications at any time. For more information please review our Privacy Policy.

Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!
Back

INFICON ISO-F 优质接头按照 ISO 1609、DIN 28404 和 Pneurop 6606 标准制造。我们的优质大直径接头是所有真空和高真空度管路应用的标准真空元件。高质量 INFICON 接头经过精心设计，通过了泄漏速率低于 1 x 10-9 mbar l/s 的测试。

好处

  • 价格极具竞争力
  • 全球物流
  • 设计和措施严格遵循国际认可的标准
  • 表面光洁度、焊缝、材料规格和清洁度均达到或超过高真空规格
  • 符合 2011/65/EU RoHS 标准

规格

 尺寸 A尺寸 B尺寸 C
DN63 ISO-F12 mm95.5 mm130 mm
DN80 ISO-F12 mm110.5 mm145 mm
DN100 ISO-F12 mm130.5 mm165 mm
DN160 ISO-F16 mm180.7 mm225 mm
DN200 ISO-F16 mm240.7 mm285 mm
DN250 ISO-F16 mm290.7 mm335 mm
DN320 ISO-F20 mm370.8 mm425 mm
DN400 ISO-F20 mm450.8 mm510 mm
DN500 ISO-F20 mm550.8 mm610 mm
DN630 ISO-F24 mm691 mm750 mm
法兰
DN63-160钢制镀镍 -/1.0831
DN200-630钢制镀镍 -/1.0037
卡环钢制镀镍





在此下载完整的规格

零件编号

零件编号描述
212-061Collar flange with retaining ring, DN63 ISO-F
212-081Collar flange with retaining ring, DN80 ISO-F
212-062Collar flange with retaining ring, DN100 ISO-F
212-063Collar flange with retaining ring, DN160 ISO-F
212-064Collar flange with retaining ring, DN200 ISO-F
212-065Collar flange with retaining ring, DN250 ISO-F
212-066Collar flange with retaining ring, DN320 ISO-F
212-067Collar flange with retaining ring, DN400 ISO-F
212-068Collar flange with retaining ring, DN500 ISO-F
212-069Collar flange with retaining ring, DN630 ISO-F
