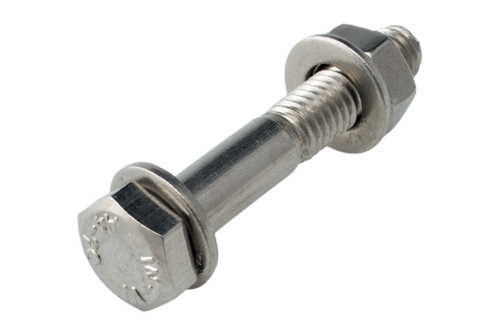

带螺母的六角螺栓
嵌入式选项
与我们一起彻底改变您的真空计使用体验！
Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!
INFICON CF 优质接头按照 ISO 3669 和最新的 TS/ISO 3669-2 标准制造。INFICON 超高真空接头设计用于压强低至 1 x 10-12 mbar 和烧烤温度高达 400°C 的应用。
好处
- 全球物流
- 设计和措施严格遵循国际认可的标准
- 符合 2011/65/EU RoHS 标准
规格
| 尺寸 A | 尺寸 B | 套 | 拧紧扭矩 | |
| DN16 ISO-CF | 20 mm | 3.2 mm | 25 x M4 | 3.5 Nm |
| DN40 ISO-CF | 35 mm | 5 mm | 25 x M6 | 10 Nm |
| DN63 ISO-CF | 45 mm | 6.5 mm | 25 x M8 | 20 Nm |
| DN100 ISO-CF | 50 mm | 6.5 mm | 25 x M8 | 20 Nm |
| DN160 ISO-CF | 55 mm | 6.5 mm | 25 x M8 | 20 Nm |
| DN200-250 ISO-CF | 60 mm | 6.5 mm | 25 x M8 | 20 Nm |
| DN300 ISO-CF | 70 mm | 8 mm | 34 x M10 | 30 Nm |
| DN350 ISO-CF | 70 mm | 8 mm | 38 x M10 | 30 Nm |
螺栓：不锈钢 316/1.4401
| ||||
零件编号
| 零件编号 | 描述 |
| 213-401 | Set of hexagonal bolts with nuts, DN16 ISO-CF |
| 213-402 | Set of hexagonal bolts with nuts, DN40 ISO-CF |
| 213-403 | Set of hexagonal bolts with nuts, DN63 ISO-CF |
| 213-404 | Set of hexagonal bolts with nuts, DN100 ISO-CF |
| 213-405 | Set of hexagonal bolts with nuts, DN160 ISO-CF |
| 213-406 | Set of hexagonal bolts with nuts, DN200-250 ISO-CF |
| 213-408 | Set of hexagonal bolts with nuts, DN300 ISO-CF |
| 213-409 | Set of hexagonal bolts with nuts, DN350 ISO-CF |
