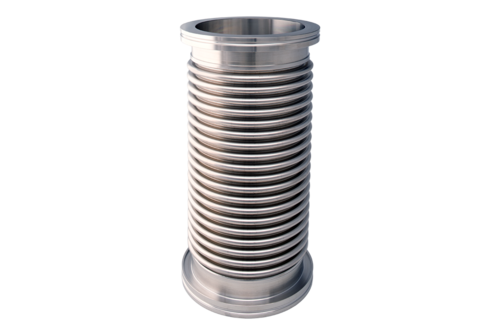

ISO-K

金属软管

嵌入式选项

与我们一起彻底改变您的真空计使用体验！

INFICON ISO-K 优质接头按照 ISO 1609、DIN 28404 和 Pneurop 6606 标准制造。我们的优质大直径接头是所有真空和高真空度管路应用的标准真空元件。高质量 INFICON 接头经过精心设计，通过了泄漏速率低于 1 x 10^-9mbar l/s 的测试。

好处

价格具有竞争力
全球物流
设计和测试严格遵循国际相关标准
表面光洁度、焊缝、材料规范和清洁度符合或超过高真空规范
2011/65/EU RoHS 兼容

规格

DN63 ISO-K

DN100 ISO-K

DN160 ISO-K

尺寸 A	250 mm/500 mm/750 mm/1000 mm

尺寸 B	330 mm

尺寸 C	90 mm

最大内部压力	1.5 bar

材料：
法兰	不锈钢 304
波纹管	不锈钢 316Ti

B = 用于多重弯曲的半径
C = 单弯半径

尺寸 A	250 mm/500 mm/750 mm/1000 mm

尺寸 B	530 mm

尺寸 C	130 mm

最大内部压力	1.5 bar

材料：
法兰	不锈钢 304
波纹管	不锈钢 316Ti

B = 用于多重弯曲的半径
C = 单弯半径

尺寸 A	1000 mm

尺寸 B	1050 mm

尺寸 C	215 mm

最大内部压力	1.5 bar

材料：
法兰	不锈钢 304
波纹管	不锈钢 316Ti

B = 用于多重弯曲的半径
C = 单弯半径

在此下载完整的规格

零件编号

DN63 ISO-K

DN100 ISO-K

DN160 ISO-K

零件编号	描述

212-211	Metal hose, inox, DN63 ISO-K, 250 mm

212-212	Metal hose, inox, DN63 ISO-K, 500 mm

212-213	Metal hose, inox, DN63 ISO-K, 750 mm

212-214	Metal hose, inox, DN63 ISO-K, 1000 mm

零件编号	描述

212-215	Metal hose, inox, DN100 ISO-K, 250 mm

212-216	Metal hose, inox, DN100 ISO-K, 500 mm

212-217	Metal hose, inox, DN100 ISO-K, 750 mm

212-218	Metal hose, inox, DN100 ISO-K, 1000 mm

零件编号	描述

212-222	Metal hose, inox, DN160 ISO-K, 1000 mm
