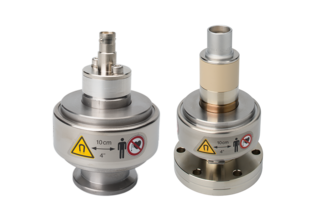

Das invertierte Magnetron-Vakuummessgerät MAG470 ist für alle Ultrahochvakuumanwendungen geeignet. Der Messbereich reicht von 5x10-11 mbar bis 1x10-2 mbar.
Vorteile
- Kein ausbrennbares Filament
- Erweiterte Version, Sensor-Bakeout bis zu 250°C
- Ausgezeichnete Zündeigenschaften
- Leicht zu reinigen
- Metallgedichtete Durchführung
- LED-Anzeige für eingeschaltete Hochspannung
- Logarithmisches analoges Ausgangssignal
Typische Anwendungen
- Ultra high vacuum pressure monitoring
- Base pressure for evaporation and sputtering systems
- General vacuum measurement and control in the medium and high vacuum range
Spezifikationen
MAG470
MAG470 extended
| Measurement range (air, N2) | mbar Torr | 5x10-11 … 1x10-2 3.8x10-11 … 7.5x10-3 |
| Accuracy | ||
| 1x10-9 ... 1x10-3 mbar | % of reading | ≈±30 |
| Repeatability | ||
| 1x10-9 ... 1x10-3 mbar | % of reading | ≈±5 |
| Temperature | ||
| Operation (ambient) | °C | +5 ... +55 |
| Storage | °C | -40 ... +65 |
| Bake-out | °C | 250 1) |
| Supply voltage | ||
| At gauge | V (dc) | +15 ... +30 |
| At supply unit with max. cable length (3) | V (dc) | +16 ... +30 |
| Ripple | V (p-p) | ≤1 |
| Power consumption | W | ≤2 |
| Materials exposed to vacuum | Stainless steel, Al2O3, Ag | |
| (1) Without electronics magnetic shielding (2) 250°C in defined area, see dimension (3) The minimum voltage of the supply unit must be increased proportionally to the length of the sensor cable | ||
| Measurement range (air, N2) | mbar Torr | 5x10-11 … 1x10-2 3.8x10-11 … 7.5x10-3 |
| Accuracy | ||
| 1x10-9 ... 1x10-3 mbar | % of reading | ≈±30 |
| Repeatability | ||
| 1x10-9 ... 1x10-3 mbar | % of reading | ≈±5 |
| Temperature | ||
| Operation (ambient) | °C | +5 ... +55 |
| Storage | °C | -40 ... +65 |
| Bake-out | °C | 250 2) |
| Supply voltage | ||
| At gauge | V (dc) | +15 ... +30 |
| At supply unit with max. cable length (3) | V (dc) | +16 ... +30 |
| Ripple | V (p-p) | ≤1 |
| Power consumption | W | ≤2 |
| Materials exposed to vacuum | Stainless steel, Al2O3, Ag | |
| (1) Without electronics magnetic shielding (2) 250°C in defined area, see dimension (3) The minimum voltage of the supply unit must be increased proportionally to the length of the sensor cable | ||
Artikelnummer
Artikelnummer
Zubehör
Ersatzteile
| MAG470 | |
| Artikelnummer | Beschreibung |
| 399-360 | MAG470 DN 40 CF-F, FCC |
| MAG470 extended | |
| Artikelnummer | Beschreibung |
| 399-361 | MAG470 DN 40 CF-F, extendet |
| MAG470 | |
| Artikelnummer | Beschreibung |
| 351-023 | Magnetic shield |
| MAG470 extended | |
| Artikelnummer | Beschreibung |
| 351-023 | Magnetic shield |
| MAG470 | |
| Artikelnummer | Beschreibung |
| 351-997 | MPG401 Maintenance set |
| 351-990 | Repair set IKR 060/070/26x/270 MAG470 |
| 351-995 | MxG40x/50x Spare parts ignition aid (10) |
| 351-994 | MPG40x Ignition tool set |
| MAG470 extended | |
| Artikelnummer | Beschreibung |
| 351-990 | Repair set IKR 060/070/26x/270 MAG470 |
| 351-995 | MxG40x/50x Spare parts ignition aid (10) |
| 351-994 | MPG40x Ignition tool set |
| 351-997 | MPG401 Maintenance set |
