IRwin® Methane Leak Detector is an innovative, portable natural gas detector for easy gas pipe survey and gas leak detection. This infrared leak detector is developed to comply with many national regulations and work procedures. The unit features a four gas meter, LEL meter, and combustible gas indicator for increased safety.

The integrated proprietary infrared sensor system (patents pending) integrated in the IRwin methane leak detector has a fast reaction and short recovery time. The system prevents false leak alarms during natural gas leak detection and ensures correct and fast leak evaluation. The specially developed Gas Chromatograph (GC) and IR-sensor combination allows fast distinction between swamp gas and natural gas. The IRwin GC gives fast test results, even at low ethane concentrations, from 1000 ppm methane leaks. IRwin is able to measure methane according to the traditional operating modes required by DVGW G 465-4, such as "Inspection above-ground" and "Measuring bar holes." For simplified use, the instrument also features a Universal Mode that combines most of the modes available into one. The range is from 1 ppm to 100 Vol. %. The Ex-certified models can also measure in the range 1-100 %LEL methane.

IRwin SX-models are certified for use in Zone 0 and US counterpart Class I Division 1.
Rating is: Ex ia IIC T3, EPL Ga. Additional marking:  II 1G for ATEX and Intrinsically Safe Class I, Division 1, Groups B, C and D, T3, for the US.

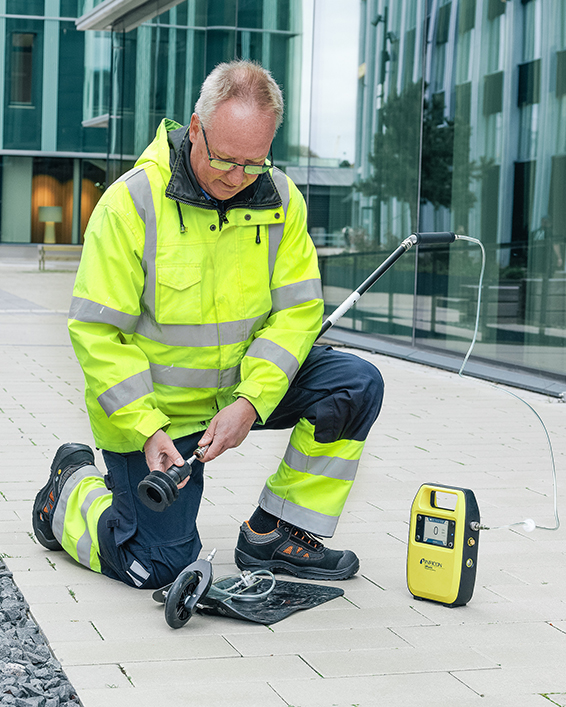

IRwin Methane Leak Detector - together with an innovative probe system specially designed for natural gas leak detection - allows for easy and effective survey of gas pipelines.



IRwin Check-In and IRwin Viewer

The free IRwin Check-In App, for Android and iOS devices, allows real-time readings on the phone or tablet, alarms to Bluetooth earphones, basic control of the IRwin measuring display and much more. Simply download the app via the  App StoreSM or Google Play on your smart phone or tablet.
For the privacy policy, please click here.

IRwin Viewer makes downloading, viewing and analyzing the data from the field easier than ever. All logfiles and reports are downloaded via the app into accessible formats like Excel and pdfs. You can download IRwin Viewer here.

IRwin Check-In
IRwin Check-In

Learn more about IRwin

The Advanced System for Natural Gas Pipeline Surveys
Remarkably Fast Ethane Analysis

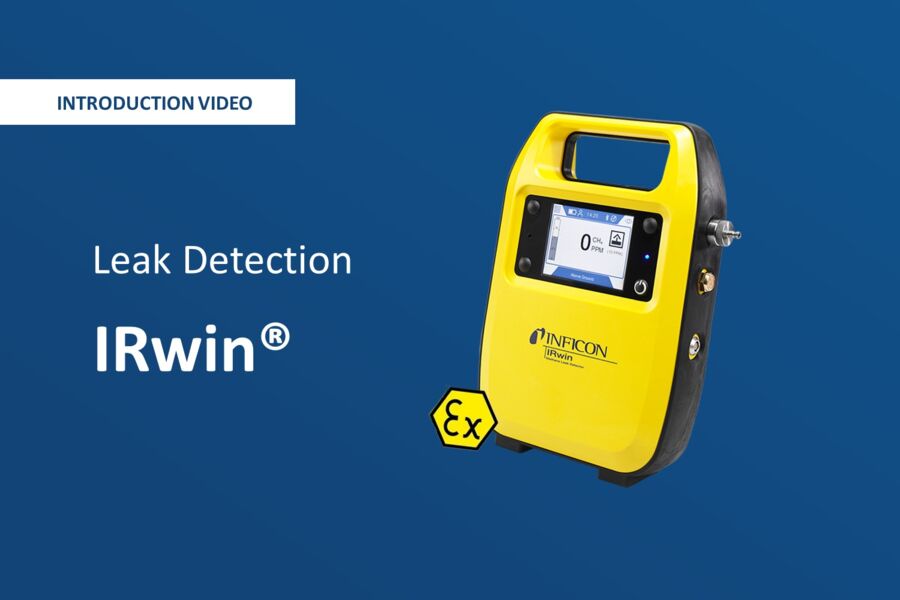

IRwin®_IntroductionVideo_Thumbnail

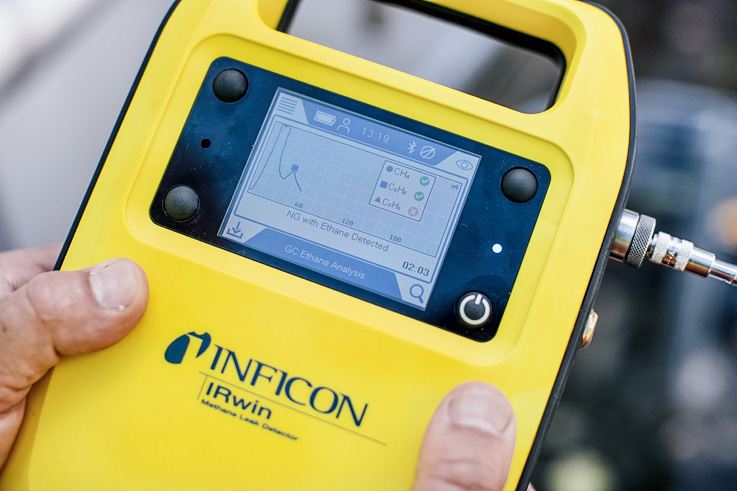

IRwin®_EthaneAnalysis

Advantages

  • Distinction between natural gas and marsh gas with GC and IR-sensor
  • No false alarms, high sensitivity, quick reaction and short recovery time thanks to the integrated proprietary IR-sensor system
  • Weatherproof IP54
  • Measurements possible even in tough environments thanks to its robust housing
  • Pinpointing leaks with a minimum of bar holes
  • Integrated GPS chip allows reliable location tracking
  • Wireless communication system for easy data transfer
  • Light and easy to move around for maximum ergonomics
  • Modular, light and innovative accessories
  • Fast charging - 1 h gives 4 h operation

Typical Applications

  • Natural gas pipelines survey
  • Emergency situations
  • Landfill emission monitoring
  • Biogas and wastewater treatment plant leak and emission monitoring

Specifications

IRwin S
IRwin SX
IRwin SXT
IRwin SXG
IRwin SXGT
Ex classification-
Sensitivity1 ppm to 100% CH4
Instrument Weight1.4 kg (3 lb.)
Ex classificationEx II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups B, C and D, T3
Sensitivity1 ppm to 100% CH4
Instrument Weight1.6 kg (3.5 lb.)
Ex classificationEx II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups B, C and D, T3
Sensitivity1 ppm to 100% CH4
Instrument Weight1.6 kg (3.5 lb.)
Ex classificationEx II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups B, C and D, T3
Sensitivity1 ppm to 100% CH4
Instrument Weight1.6 kg (3.5 lb.)
Ex classificationEx II 1G, Ex ia IIC T3 Ga, Intrinsically safe Class I, Division 1, Groups B, C and D, T3
Sensitivity1 ppm to 100% CH4
Instrument Weight1.6 kg (3.5 lb.)
Part Number
Accessories
Spare Parts
IRwin S
580-000IRwin S - Methane, Carbon dioxide, Ethane* (*For swamp gas analysis only)
580-712IRwin Accessories Kit
580-240IRwin Compact Kit

IRwin SX
580-010IRwin SX - Methane, Carbon dioxide, Ethane*, Propane**, Buthane**
(*For swamp gas analysis only, **Replaces Methane through settings in Ex-mode)
580-712IRwin Accessories Kit
580-240IRwin Compact Kit

IRwin SXG
580-020IRwin SXG - Methane, Carbon dioxide, Ethane, Propane, Butane
580-712IRwin Accessories Kit
580-240IRwin Compact Kit

IRwin SXGT
580-030IRwin SXGT - Methane, Carbon dioxide, Ethane, Propane, Butane, Oxygen, Hydrogen Sulfide, Carbon monoxide
580-712IRwin Accessories Kit
580-240IRwin Compact Kit

IRwin SXT
580-015                    IRwin SXT - Methane, Carbon dioxide, Oxygen, Hydrogen Sulfide, Carbon monoxide, Ethane*, Propane**, Buthane**
(*For swamp gas analysis only, **Replaces Methane through settings in Ex-mode)
580-712IRwin Accessories Kit
580-240IRwin Compact Kit
580-100Hand probe
580-110Hand Probe Flexible Extension
580-115Bar Hole Probe
580-120Swan Neck
580-140Short Rod, 600mm
580-150Rod
580-160Extension Rod, 150mm
580-170Compact Rod, 330+330mm
580-180Soft Surface Probe
580-185M21 Probe
580-190Sub Surface Probe
580-210Mono-wheeler Carpet Probe (patent pending)
580-211Carpet
580-300Bell Probe
580-301Bell
580-305Flexi Bell
580-405Harness IRwin
580-450Transport Case
581-314Transport Case for Compact Kit

580-230On Demand Flow Regulator (ODFR) 5/8x18 UNF
580-235On Demand Flow Regulator (ODFR) 7/16x28 UNEF
580-220Extension Connector
580-700Filter-kit
580-604EX Certified IRwin Charging Adapter
580-605Charger for IRwin, all models, 100-240V
591-361Charger cable for car, 12V
581-167Battery (replaceable at authorized service centers only)
580-701Mat repair kit
