Solid Phase Microextraction (SPME) Sampling System
Identify an Expanded Range of Chemicals in Hard to Reach or Dangerous Environments
Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!

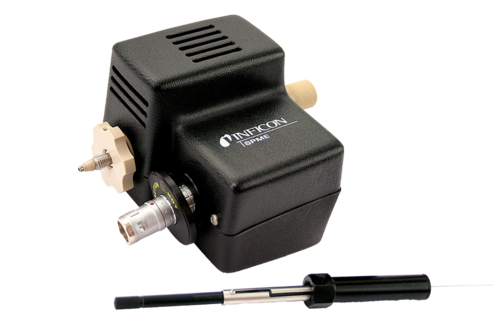

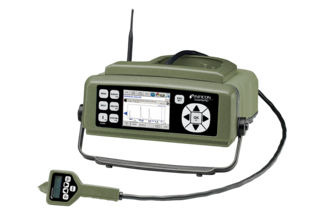

The Solid Phase Microextraction (SPME) Sampling System expands the chemical identification capabilities of the field-proven, person-portable HAPSITE ER Chemical Identification System.
Small and lightweight, SPME technology maximizes sampling opportunities in hard to reach or dangerous areas for actionable results on-scene. The accessory is easily attached to the HAPSITE ER universal interface for fast sample analysis utlizing the Gas Chromatograph/Mass Spectrometer (GC/MS) or MS (Mass Spectrometer) only. SPME provides identifiable results in minutes allowing for rapid decisions affecting life, health and safety.
Features
- Fast sampling using SPME Survey
- Enhanced HAPSITE ER performance with low volatility compounds including V-agents and explosive taggants
- Increased portability and mobility
- Numerous fibers can be brought to the field for sampling and analyzed at a central location
- Samples flammable and explosive materials as well as various unknown compounds
- Quickly and easily attaches to HAPSITE ER via the Universal Interface (UI)
- Integrates with HAPSITE ER IQ software, for access to NIST and the NIOSH database
Specifications
| SPME Fiber | 23 gauge, various coating options, approx. 50 injections per fiber |
| SPME Liner | Deactivated stainless steel with intrinsic 2μ particle filter, removable/replaceable |
| SPME Fiber Seal Life (Typical) | 200 injections |
| Water Sampling Detection Limits | Trichloroethylene (TCE) low ppb |
Consumables
Spare Parts
| Part Number | Description |
| 934-707-G1 | SPME Spare Parts Kit |
| 934-707-G2 | SPME Sampling Fiber Kit |
| 934-707-G3 | SPME Red Fiber Kit |
| 934-707-G4 | SPME Blue Fiber Kit |
| 934-707-G5 | SPME Black Fiber Kit |
| 934-707-G6 | SPME Fiber Holder Kit |
| Part Number | Description |
| 934-458-P1 | Ship Case, SPME |
| 934-707-G1 | SPME Spare Parts Kit |
| 934-707-G2 | SPME Sampling Fiber Kit |
| 934-707-G3 | SPME Red Fiber Kit |
| 934-707-G4 | SPME Blue Fiber Kit |
| 934-707-G5 | SPME Black Fiber Kit |
| 934-707-G6 | SPME Fiber Holder Kit |
