Quantus® HP100
Real-time Leak Detection, Endpoint Detection and Process Monitoring
Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!

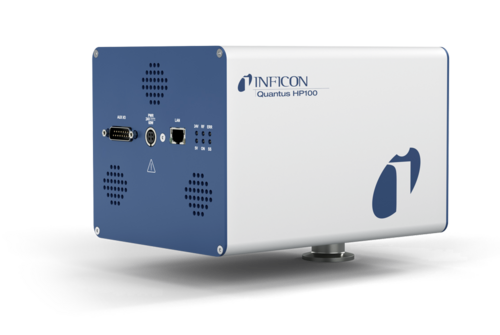

INFICON Quantus HP100 gas analyzer is based on Self-Plasma Optical Emission Spectroscopy (SPOES) technology and is designed to provide real-time leak detection, endpoint detection and process monitoring during semiconductor manufacturing. Quantus HP100 has excellent sensitivity, a compact form factor and offers wide operational pressure range without costly pumps, making it well suited for process monitoring and protection in most semiconductor tools.
Features
- Operating range of 1 Torr – 450 Torr for Argon and 1 Torr – 120 Torr for Nitrogen (Varies for other gas species)
- Low detection limits <1 ppm
- Easy installation using a standard KF25 connection
- Fast sampling (20 Hz maximum)
- Small footprint (H x W x L): 6.4 x 6.0 x 8.3 in. [162 x 153 x 210 mm]
- Low maintenance, no pumps or consumables required
- Convenient field-replaceable plasma cell
- Worldwide expert support for your particular process needs
Specifications
| Operating pressure | 1 Torr - 450 Torr (application dependent) |
| Spectrometer performance | 200 to 850 nanometer wavelengths (UV-VIS) 16-bit full-scale resolution, 3648 pixels |
| Detection limit | < 1 ppm (application dependent) |
| Exposure time | Minimum of 1 ms |
| Vacuum fitting | KF25 |
