Hydrogen Leak Detector

Extrima®

Ex-Certified Hydrogen Leak Detector

The portable Extrima Leak Detector is the ultimate intrinsically safe instrument for leak detection in the toughest environments, including hazardous locations such as Zone 0 (corresponding to Division 1).

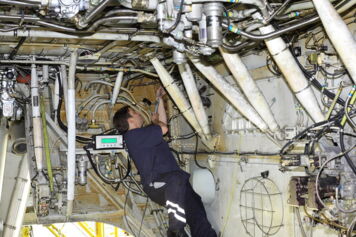

The Extrima allows you to quickly find leaks on a wide range of industrial applications such as aircraft and hydrogen cooled generators. With the Extrima the aviation industry has a safe, accurate and yet simple solution for leak testing of complete fuel systems, both in production and maintenance situations. Thanks to its high sensitivity, the Extrima can detect even minute leaks with pinpoint accuracy. Extensive tests have shown that using the Extrima can reduce the average time by more than 50 % for identifying, locating and repairing a leak on a fighter jet during maintenance.

It is certified for use in Zone 0, classification Ex ia, IIC T3 with ATEX, IECEx, TIIS, NEPSI and CSA certificates. The Extrima can be used to trace leaks using Forming gas (5% H₂/95% N₂) or in applications where pure hydrogen is used.

Features

Intrinsically safe: Ex ia IIC T3
High sensitivity 0.5 ppm/ 5E10^-7cc/s using 5% H₂/95% N₂
Waterproof: IP 67
1 minute start up time
Unique selectivity to hydrogen

Advantages

Intrinsically safe for use in hazardous areas (Ex ia IIC T3)
Robust enclosure for demanding field use
High sensitivity and fast recovery allow for efficient operation
Low and easy maintenance
Portable, battery operated (more than 7 hours of use per charge)
Sensor change in less than a minute
Incorporates the proven Sensistor technology developed for using forming gas (5% hydrogen in nitrogen) as tracer gas

Typical Applications

Aerospace – complete fuel systems, oxygen supply, cooling systems and fire extinguishing systems, both in production and maintenance
Power production – hydrogen-cooled generators and fuel cells
Process industry – e.g., pipe systems, valves and containers
Petro chemical industry

Specifications

Minimum detectable leak rate
Measuring mode	0.5 ppm - 0.2% H₂
Locating mode	5 x 10^-7 cc/s (using 5 % H₂ tracer gas)

Ex classification	Ex ia IIC T3

Battery Capacity - full charge, screen saver activated	Up to 7 h at >15°C (59°F)

Weight (excl. probe and probe cable)	4.5 kg (10.0 lb.)

Part Number

Device

Accessories

Consumables

Spare Parts

Part Number	Description
590-600	Extrima

Part Number	Description
590-606	Hand Probe PX57 (rigid neck)
590-607	Hand Probe PX57 Flex (flexible neck)
590-618	Injection Fix Kit, for injecting tracer gas to leaks on uneven surfaces
590-619	Injection Panel, for easy gas injection from bottle to Injection Pad
590-621	Complete Gas Injection Kit (incl. Injection Panel, Injection Fix Kit and Injection Pads)
590-421	Calibration Leak Type B, 5x10E-3 mbarl/s @1bar
590-422	Calibration Leak Type C, 5x10E-4 mbarl/s @1bar
590-427	Calibration Leak Type E, 10g/a
590-429	Calibration Leak Type G, 3g/a

Part Number	Description
590-615	Injection Pads Small, 60 mm, 10 pcs (for filling tracer gas into fuel tanks)
590-616	Injection Pads Large, 150 mm, 10 pcs (for filling tracer gas into fuel tanks)
590-270	Antistatic Sensor Caps (50 pcs) for Hand Probe
590-292	Replacement Hydrogen Sensor for Hand Probe P60, P60 Flex, P50, P50 Flex, PX57, PX50 Flex,PK50 and PK50 Flex
591-038	Water Protective Tape, for waterprotecting the sensor

Part Number	Description
590-260	CX21 Probe Cable, 9.8 ft (3m) for Hand Probe PX57. PX57 Flex, PX50 and PX50 Flex
590-265	CX21 Probe Cable,16.4 ft (5m) for Hand Probe PX57. PX57 Flex, PX50 and PX50 Flex
591-656	Battery Charger (includes P/N 592-101 and P/N 592-102)
592-101	Charging Adapter
592-102	Power Supply
598-147	Sensor Key (for Hand Probe P60, P60 Flex, P50, P50 Flex, PX50 and PX50 Flex)
591-687	Shoulder Strap

Downloads

Datasheet

Extrima, Ex-certified Hydrogen Leak Detector JA

pdf • 374,1 KB • Japanese • Datasheets

Extrima, Ex-certified Hydrogen Leak Detector KO

pdf • 278,8 KB • Korean • Datasheets

Extrima, Ex-certified Hydrogen Leak Detector ZH

pdf • 359,4 KB • Chinese • Datasheets

Brochures

Brochure Extrima

pdf • 2,7 MB • Spanish • Brochures

Brochure Extrima (FRE)

pdf • 551,3 KB • French • Brochures

Calibration Leaks

pdf • 306,9 KB • English • Brochures

Extrima

pdf • 559,2 KB • German • Brochures

Extrima

pdf • 554,3 KB • English • Brochures

Leak Detection in Aviation

pdf • 634,0 KB • English • Brochures

Quality Assurance in Utilities

pdf • 6,1 MB • English • Brochures

Manuals

Extrima Ex-certified Hydrogen Leak Detector User Manual

pdf • 2,2 MB • Japanese • Operating Manual

Benutzerhandbuch Extrima Wasserstoff-Lecksuchgerät

pdf • 1,3 MB • German • Operating Manual

Extrima Ex-certified Hydrogen Leak Detector User Manual

pdf • 1,5 MB • English • Operating Manual

Extrima Ex-certified Hydrogen Leak Detector User Manual

pdf • 1,2 MB • French • Operating Manual

Extrima Ex-certified Hydrogen Leak Detector User Manual

pdf • 3,6 MB • Portuguese • Operating Manual

Reference Leak User Manual (EN+DE)

pdf • 1,9 MB • German, English • Operating Manual

Reference Leak User Manual (VTI Filling Instructions)

pdf • 92,6 KB • English • Operating Manual

Catalogs

LD-Katalog-2022-23-DE

pdf • 6,9 MB • German • Catalogs

discontinued product

Other Files

ATEX PQAN IRwin and Extrima

pdf • 162,2 KB • English • Certificates

CE declaration Extrima

pdf • 270,5 KB • English

CE declaration Extrima

pdf • 275,3 KB • Portuguese

CE declaration Extrima

pdf • 271,5 KB • French

CE Erklärung Extrima

pdf • 282,2 KB • German

Extrima ATEX certificate

pdf • 1,5 MB • English

Extrima CSA certificate of compliance

pdf • 77,5 KB • English

Extrima IECEx certificate of conformity

pdf • 288,5 KB • English

Extrima TIIS certificate

pdf • 1,7 MB • Japanese

IECEx QAR IRwin and Extrima

pdf • 256,7 KB • English • Certificates

REACH and Safety Information Extrima LiIon Cells

pdf • 539,5 KB • English

Technical Note Travelling by air with Li-ion powered devices

pdf • 340,3 KB • English

U.S. Navy locates potential fuel leaks with earth-friendly technology

pdf • 2,3 MB • English

UK QAN for IRwin and Extrima

pdf • 117,7 KB • English • Certificates

UKCA declaration Extrima

pdf • 272,4 KB • English

UN38.3 Summary Report Extrima LiIon Cells

pdf • 558,9 KB • English
