AST-ID Refrigerant Identifier is designed to verify that the refrigerant in a vehicle or cylinder meets the purity standard necessary for use or reuse.  This portable tool also reveals the presence of contaminants like hydrocarbons and oxygen, both of which can negatively impact the performance of an AC system.

Sample vapor from cylinders or vehicles and identify R1234yf or R134a using AST-ID.  With SAE J2912 approval and the versatility to be used in SAE or VDA test modes, AST-ID is the reliable, user-friendly refrigerant identifier technicians can trust.


AST-ID Lifestyle 2
AST-ID Lifestyle 2

AST-ID Videos

AST-ID Product Video
We require your consent for video content
We use the service of Youtube to provide video content. By clicking 'Accept', you consent to its use.
More Information

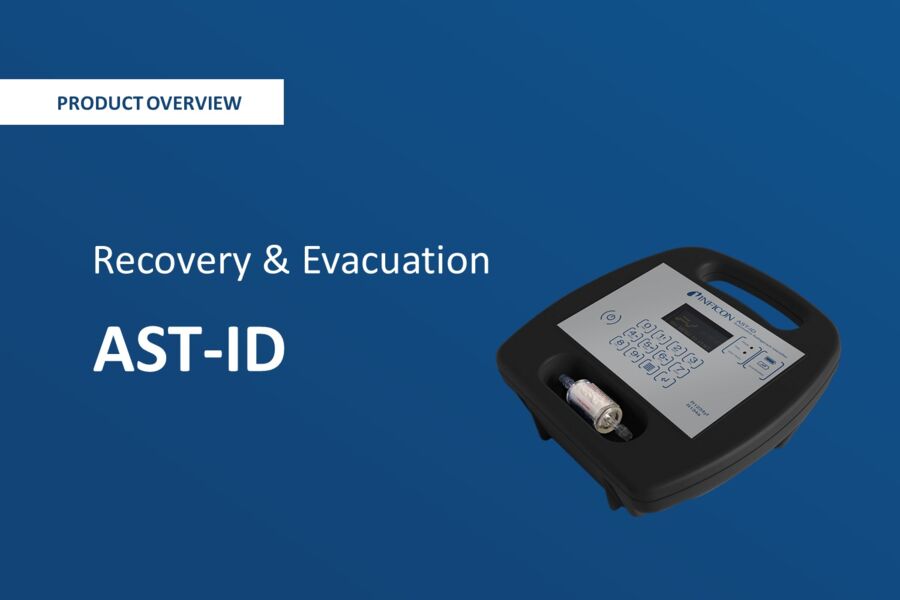

AST-ID Product Video Thumbnail (1500x1000)

Features

  • Identifies R1234yf and R134a
  • SAE or VDA test modes
  • Sample vapor from cylinders or vehicles
  • Sample contents shown as a percentage of weight
  • NDIR - Non-dispersive infrared technology

Advantages

  • SAE J2912 approved
  • A2L Certified
  • Five-year O2 sensor
  • Lithium ion rechargeable battery
  • Multi-language operation including English, German, French, Italian, Spanish, Chinese and Polish
  • Optional Bluetooth® printer

Typical Applications

  • Automotive AC service

Specifications

IncludesAST-ID Refrigerant Identifier
Sample hose with oil restrictor
R134a vehicle low side quick connect
R1234yf vehicle low side quick connect
R134a cylinder adapter
R1234yf cylinder adapter
Wall charger (US and International)
Carrying case
Compatible refrigerantsR134a
R1234yf
Data output formatSAE or VDA
Sample typeVapor (less than 5 g per test)
Oxygen sensor life5 years
Power sourceLithium ion battery (rechargeable)
Battery life8 hours
Weight2.7 lbs (1.2 kg)
CertificationsCE
UKCA
SAE J2912
UL 61010
A2L Certified
Sample tube length67 in. (1.7 m)
WarrantyTwo-year
Download full specifications
Part number
Accessories & Replacement Parts
505-202-G1AST-ID
505-603-P1AST-ID Bluetooth® printer
502-604-P1AST-ID spare printer paper (5 pack)
505-701-G1Sample hose with oil restrictor
505-707-P1Oil filter
033-0097Wall charger with international plugs
505-708-P17.4 V lithium-ion battery
505-702-P1R134a vehicle quick connect coupler
505-703-P1R1234yf vehicle quick connect coupler
505-704-P1R134a cylinder adapter
505-705-P1R1234yf cylinder adapter
