1. Adaptor, stainless steel 303
ISO-KF/ISO-K

Adaptor, stainless steel 303

Adaptor-Flange-ISO-K-ISO-KF
Drop-in Options

Revolutionize your vacuum gauge experience with us!

Discover more

Product configurator

Gemini™ MxG5xx

Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Your configuration
inficon-gauge
Gemini™ MxG5xx
Flange
DN 16 ISO-KF
Switching functions
None
Electrical Connection
FCC, 8-pin
Digital Interface
None
Measurement range
1.2 - 8.68 V
Request
Personal information

You can unsubscribe from these communications at any time. For more information please review our Privacy Policy.

Product
inficon-gauge
Gemini™ MxG5xx
Gemini™ MAG500
Your configuration has been successfully sent!
Back

INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components are designed and tested for leak rates less than 1 x 10-9 mbar l/s.

Advantages

  • Competitively priced
  • World wide logistics
  • Design and measures follow strictly international respected standards
  • Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
  • 2011/65/EU RoHS compliant

Specifications

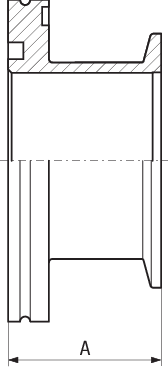

 Dimension A
DN40 ISO-KF/DN63 ISO-K40 mm
DN50 ISO-KF/DN63 ISO-K45 mm
DN40 ISO-KF/DN100 ISO-K40 mm

DN25 ISO-KF/DN63 ISO-K



50 mm
Download full specifications

Part Number

 Part NumberDescription
DN40 ISO-KF/DN63 ISO-K212-173Adaptor piece, inox, DN40 ISO-KF/DN63 ISO-K
DN50 ISO-KF/DN63 ISO-K212-174Adaptor piece, inox, DN50 ISO-KF/DN63 ISO-K
DN40 ISO-KF/DN100 ISO-K212-175Adaptor piece, inox, DN40 ISO-KF/DN100 ISO-K
DN25 ISO-KF/DN63 ISO-K212-176Adaptor piece, inox, DN25 ISO-KF/DN63 ISO-K
