ISO-KF

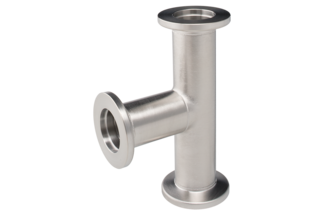

Tee, aluminum
Drop-in Options
Revolutionize your vacuum gauge experience with us!
Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!
INFICON ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality INFICON components are designed and tested for leak rates less than 1 x 10-9 mbar l/s.
Advantages
- Competitively priced
- World wide logistics
- Design and measures follow strictly international respected standards
- Surface finish, welds, material specifications and cleanliness meet or exceed high vacuum specifications
- 2011/65/EU RoHS compliant
Specifications
| Dimension A | Dimension B | Dimension C | |
| DN10 ISO-KF | 30 mm | 60 mm | 12 mm |
| DN16 ISO-KF | 40 mm | 80 mm | 16 mm |
| DN25 ISO-KF | 50 mm | 100 mm | 25 mm |
DN40 ISO-KF
| 65 mm | 130 mm | 39 mm |
Part Number
| Part Number | Description | |
| DN10 ISO-KF | 211-261 | Tee piece, Al, DN10 ISO-KF |
| DN16 ISO-KF | 211-262 | Tee piece, Al, DN16 ISO-KF |
| DN25 ISO-KF | 211-263 | Tee piece, Al, DN25 ISO-KF |
| DN40 ISO-KF | 211-264 | Tee piece, Al, DN40 ISO-KF |
