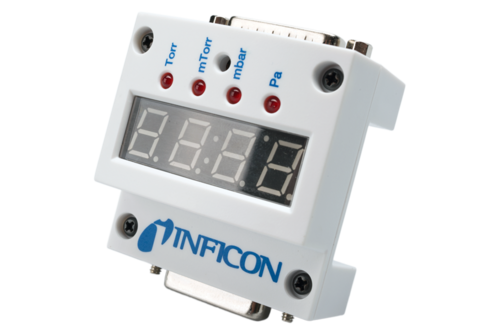

The INFICON Vacuum Gauge Display VGD500 connects to our CDG product line to provide a 4 Digit Display. It`s a small unit which Displays the pressure of the gauge. The pressure reading is selectable in pressure unit Torr, mTorr, mbar and Pa.

Advantages

  • 4 Digit display for easy read out
  • Large 10mm active LED display -
    readable from distance and wide range gauge of angle
  • In-line plug design
  • 15pin D-Sub, no extra power connection
  • Compact small size
  • Compatible with all Fullscale ≥100mTorr
  • pressure Units selectable (Torr, mTorr, mbar and Pa)
  • CE certified

Specifications

Type VGD500
Display 4 digits
Connection
Gauge SideGauge SideD-Sub, 15-pin, female
Measurement cable sideMeasurement cable sideD-Sub, 15-pin, male
Signal digital input RS232
Pressure unit (adjustable) Torr (default), mTorr, mbar, Pa
Supply
Power consumptionW≤1
VoltageVoltage+14 ...+30V (dc) or +/-15V (ac)
Degree of protection IP 40
Admissible temperature
OperationOperation+5 ... +50°C
StorageStorage-20 ... +85°C
Use indoors only
Connectable gauges in the measurement range (F.S.) 0.1mbar/Torr to 1000mbar/Torr SKY CDG025D
SKY CDG025D-X3
SKY CDG045D
SKY CDG100D
SKY CDG160D
SKY CDG200D
Edge CDG025D2
Edge CDG045D2
Edge CDG100D2

Note: VGD500 is not compatible with current loop CDGs
(output signal 4 … 20mA)
Weight 58g
Dimensions 50x63x34mm
仕様の詳細はこちらからダウンロードできます。

Part Number

Part NumberDescription
399-653VGD500 Vacuum Gauge Display
