ISO-KF

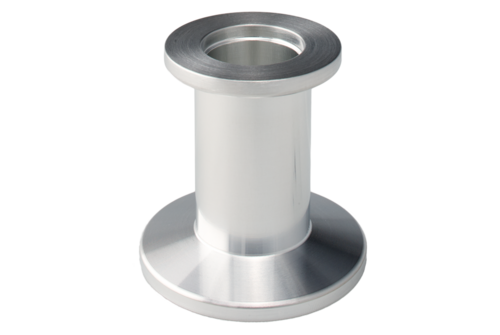

리듀서, 알루미늄

ACADEMY

산업 또는 제품 관련 무료 웨비나에 관심이 있으세요?

INFICON ISO-KF 피팅은 ISO 2861/1, DIN 28403 및 Pneurop 6606에 따라 제작됩니다. 고품질 피팅은 모든 진공 및 고진공 용도를 위한 표준 구성품입니다. 고품질 INFICON 구성품은 1 x 10^-9mbar l/s 미만의 누출률용으로 설계되고 테스트되었습니다.

장점

경쟁력 있는 가격 책정
세계적인 물류
설계 및 측정은 국제적인 표준을 엄격히 따릅니다
표면 마감, 용접, 재료 사양 및 청결성은 높은 진공 사양을 충족하거나 초과합니다
2011/65/EU RoHS 준수

사양

	치수 A	치수 B

DN25/16 ISO-KF	40 mm	16 mm

DN40/16 ISO-KF	40 mm	16 mm

DN40/25 ISO-KF	40 mm	25 mm

DN50/40 ISO-KF	40 mm	40 mm

전체 사양 다운로드

파트 넘버

	파트 넘버	설명

DN25/16 ISO-KF	211-231	Reducing intermediate piece, Al, DN25/16 ISO-KF

DN40/16 ISO-KF	211-232	Reducing intermediate piece, Al, DN40/16 ISO-KF

DN40/25 ISO-KF	211-233	Reducing intermediate piece, Al, DN40/25 ISO-KF

DN50/40 ISO-KF	211-234	Reducing intermediate piece, Al, DN50/40 ISO-KF

다운로드

브로셔

데이터시트

리듀서 - 알루미늄

pdf • 324,3 KB • 한국어 • 데이터시트

3D 파일

ISO-KF DN25/16

zip • 11,2 KB • 3D 파일

ISO-KF DN40/16

zip • 11,2 KB • 3D 파일

ISO-KF DN40/25

zip • 11,3 KB • 3D 파일

ISO-KF DN50/40

zip • 11,2 KB • 3D 파일
