ISO-K

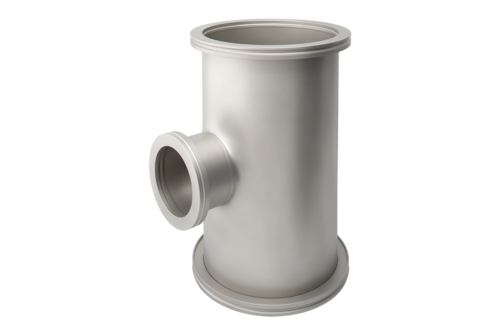

리듀싱 티, 스테인레스 스틸

ACADEMY

산업 또는 제품 관련 무료 웨비나에 관심이 있으세요?

INFICON ISO-K 고품질 피팅은 ISO 1609, DIN 28404 및 Pneurop 6606에 따라 제작됩니다. 당사의 고품질 대구경 피팅은 모든 진공 및 고진공 제품군의 표준 진공 구성품입니다. 고품질 INFICON 피팅은 1 x 10^-9mbar l/s 미만의 누출률용으로 설계되고 테스트되었습니다.

장점

경쟁력 있는 가격 책정
세계적인 물류
설계 및 측정은 국제적인 표준을 엄격히 따릅니다
표면 마감, 용접, 재료 사양 및 청결성은 높은 진공 사양을 충족하거나 초과합니다
2011/65/EU RoHS 준수

사양서

	치수 A	치수 B	치수 C

DN160/63 ISO-K	138 mm	276 mm	130 mm

DN160/100 ISO-K	138 mm	276 mm	131 mm

DN250/200 ISO-K	190 mm	380 mm	208 mm

재료: 스테인레스 스틸 304

전체 사양 다운로드

파트 넘버

파트 넘버	설명

212-196	Red.-T piece, DN160/63 ISO-K

212-197	Red.-T piece, DN160/100 ISO-K

212-198	Red.-T piece, DN250/200 ISO-K

다운로드

브로셔

데이터시트

리듀싱 티 - SUS KO

pdf • 335,6 KB • 한국어 • 데이터시트

3D 파일

ISO-K DN160/100

zip • 24,0 KB • 3D 파일

ISO-K DN160/63

zip • 23,2 KB • 3D 파일

ISO-K DN250/200

zip • 26,0 KB • 3D 파일
