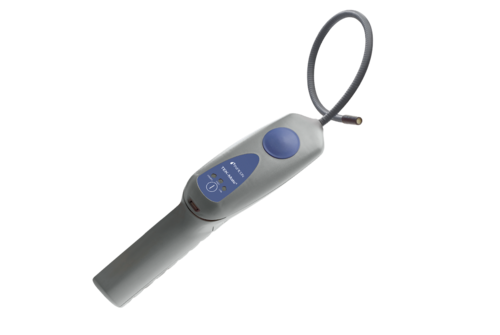

Refrigerant Leak Detector
TEK-Mate®
Proven Heated Diode Technology in an Affordable Package
Product configurator
Gemini™ MxG5xx
Type
Sensor version
Ionization chamber
Emmision current
Flange connection to vacuum chamber
Switching function
Electrical connection
Digital interface
Analog output signal
Request
Your configuration has been successfully sent!
TEK-Mate is the ideal refrigerant leak detector for the light-to-medium duty user who demands reliable leak detection at a budget-friendly price.
Features such as the INFICON heated diode sensor, variable intensity audible and visual alarms and automatic compensation for changing background refrigerant concentrations make TEK-Mate the best bargain in refrigerant leak detectors.
See for yourself why TEK-Mate is the #1 selling refrigerant leak detector in the HVAC/R market.
Features
- Heated diode sensor
- Two year replacement warranty
- Made in the USA
Advantages
- Detects R22, R134a, R404a, R410a, R448a, R507 (AZ-50), R32, HFO1234yf, and all other CFCs, HCFCs, HFCs, and HFOs
- Runs on 2 "D" cell batteries
- No need for adjustments since the automatic background compensation feature continuously monitors and compensates for changing background "noise."
Typical Applications
- Residential AC/Refrigeration
Specifications
| Includes | Sensor, (2) D size alkaline batteries, spare filters, a hard plastic carrying case | |
| Minimum sensitivity | 0.25 oz./year (7 g/a) | |
| Power source | (2) D size alkaline batteries | |
| Sensitivity per EN14624 | ||
| R134a | R134a | 2 g/a (0.07 oz./yr) |
| R1234yf | R1234yf | 2 g/a (0.07 oz./yr) |
| Certifications | EN 14624:2012, CE marking per Safety and EMC | |
Part number
Consumables
Spare Parts
| 705-202-G1 | TEK-Mate, North America |
| 705-202-G11 | TEK-Mate, Euro |
| 703-020-G1 | Replacement Sensor |
| 705-600-G1 | Replacement filters |
| 703-020-G1 | Replacement Sensor |
| 705-600-G1 | Replacement filters |
